Simple and scalable linked read library technology
-
UST’s Transposase Enzyme-Linked Long-read Sequencing (TELL-Seq™) is a simple and scalable NGS library technology that generates barcode linked-reads for genome-scale or targeted sequencing applications. The whole procedure can be carried out in a PCR tube without the need for expensive instrumentation. The TELL-Seq™ Library Prep Kit will generate an Illumina sequencing library in just 3 hours. The protocol can be easily adjusted based on the genome or target size to be analyzed.

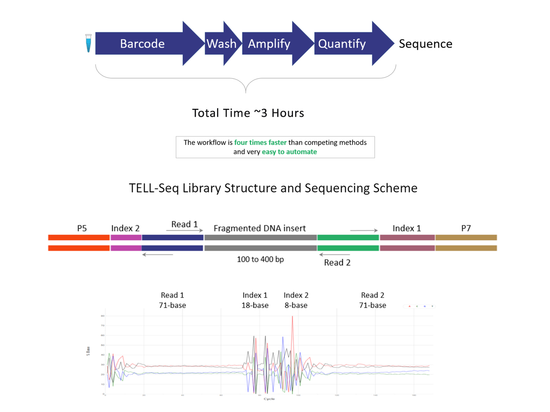

TELL-Seq Library Preparation and Sequencing Workflow
Results
![](http://universalsequencing.com/cdn/shop/files/image-asset.png?v=1658759910&width=1500)

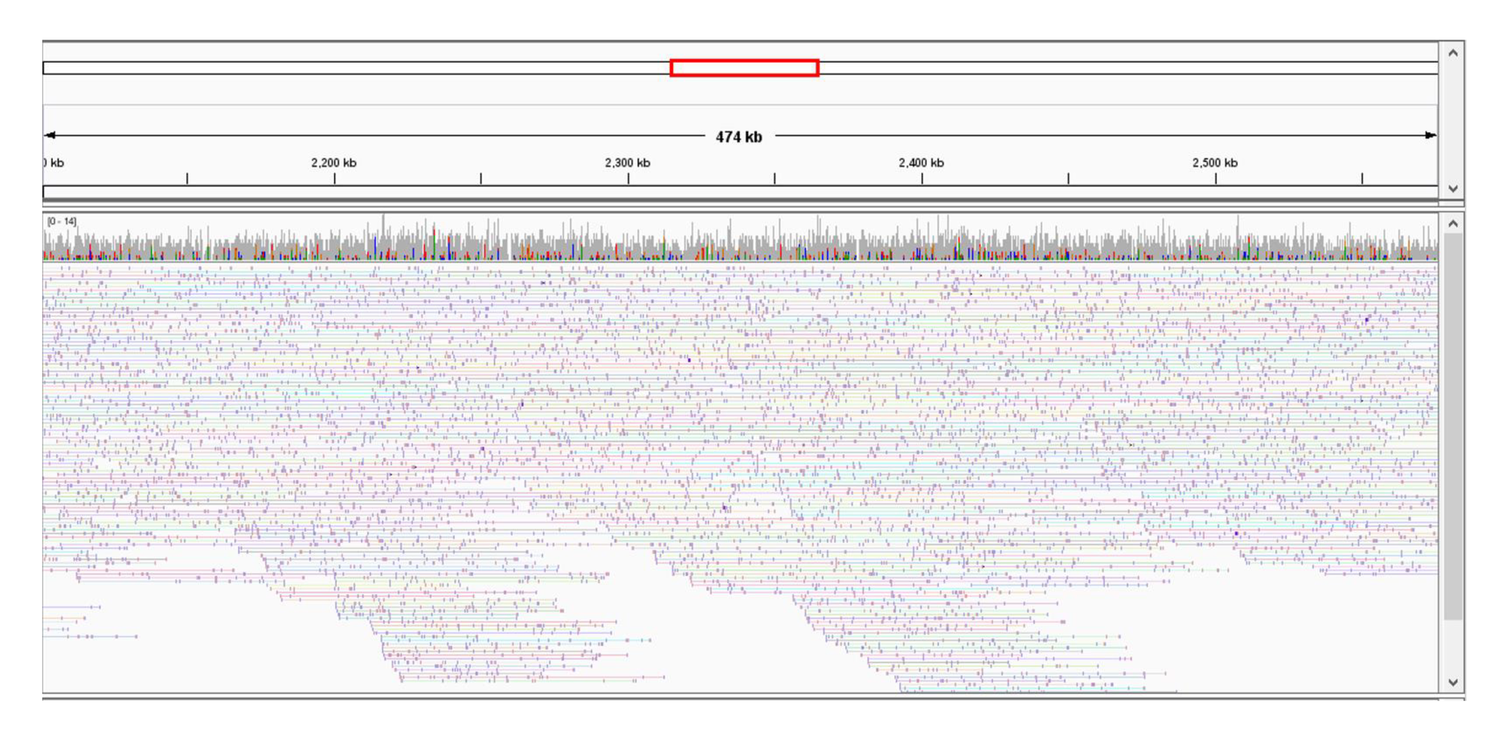

Results I
IGV SNAPSHOT OF TELL-SEQ LINKED READS
![](http://universalsequencing.com/cdn/shop/files/Results_2.png?v=1658763897&width=1500)

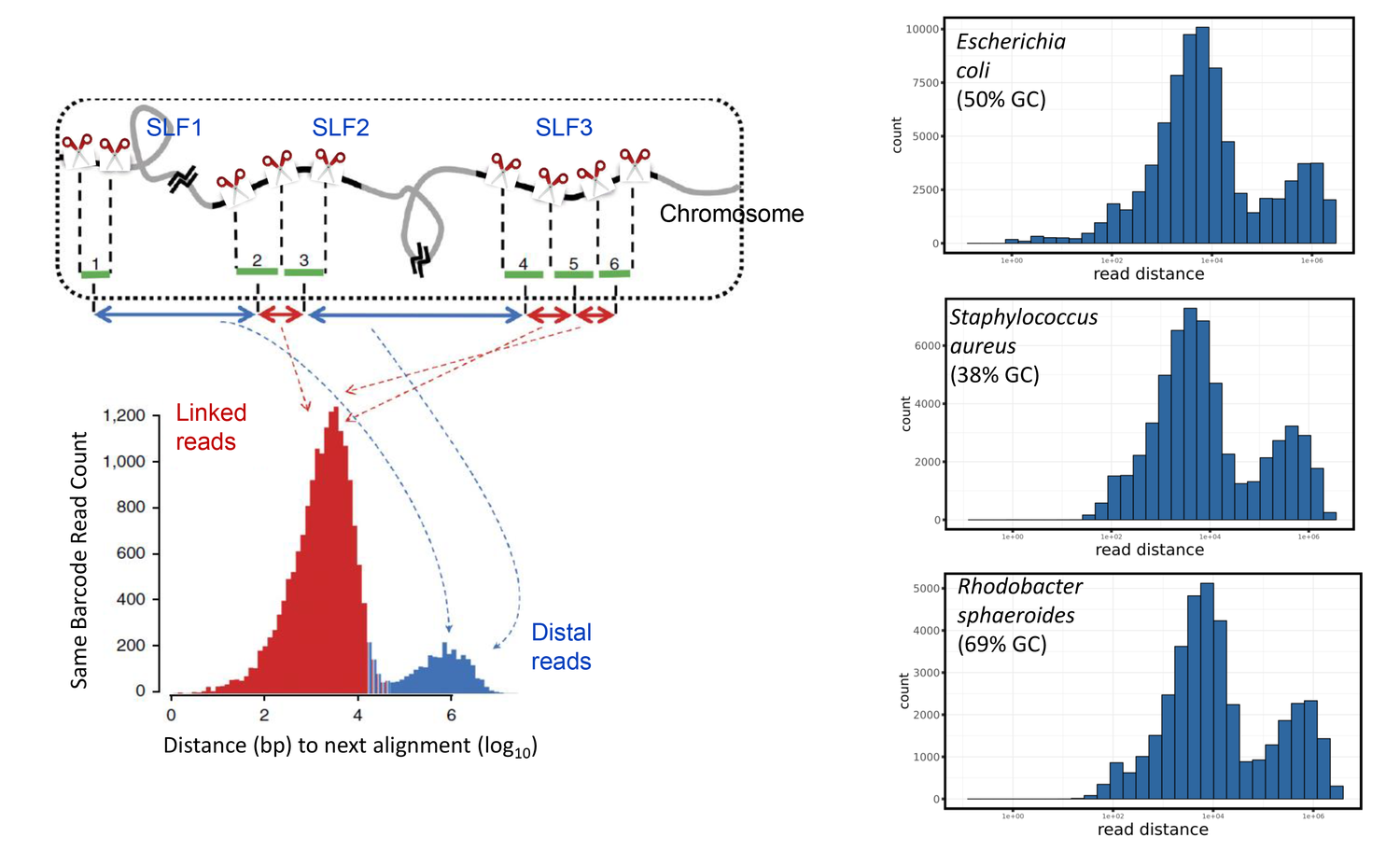

Results II
TELL-SEQ RESULTS FOR THREE BACTERIA WITH DIFFERENT GC CONTENT
![](http://universalsequencing.com/cdn/shop/files/Results_4.png?v=1658763897&width=1500)

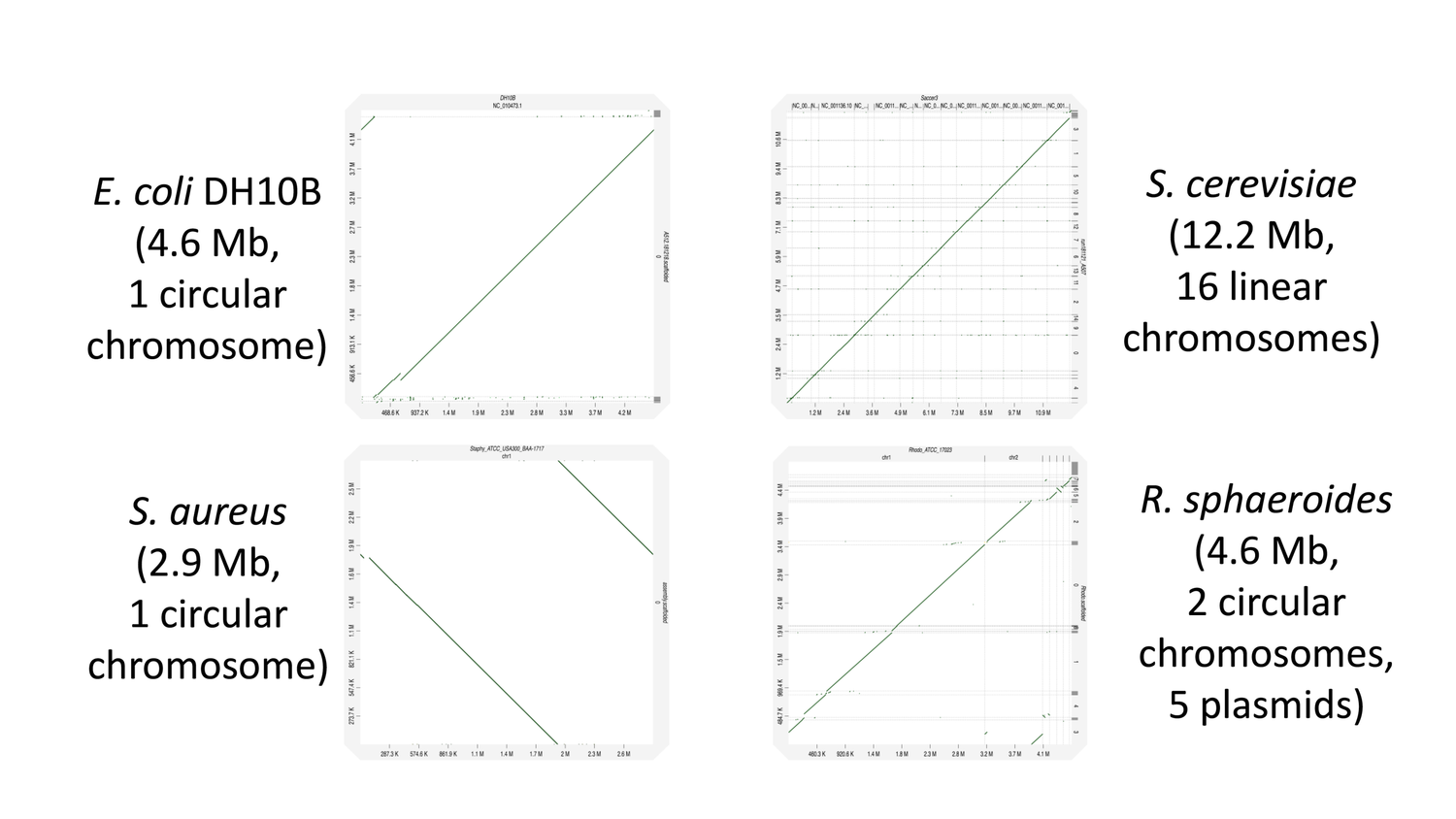

Results III
DE NOVO ASSEMBLY RESULTS COMPARED WITH REFERENCE
![](http://universalsequencing.com/cdn/shop/files/Results_5x_9488e2a2-5873-464f-928b-07ee1f75c667.png?v=1658763897&width=1500)

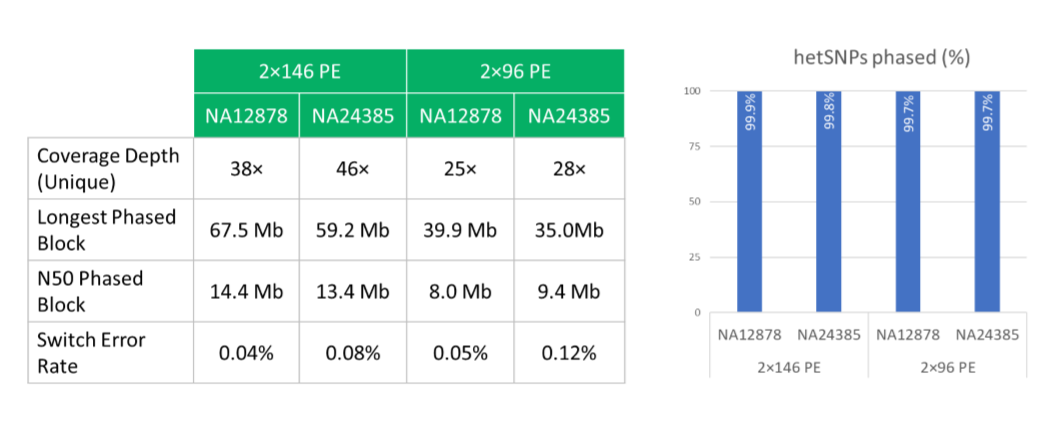

Results IV
WHOLE GENOME HAPLOTYPE PHASING RESULTS
